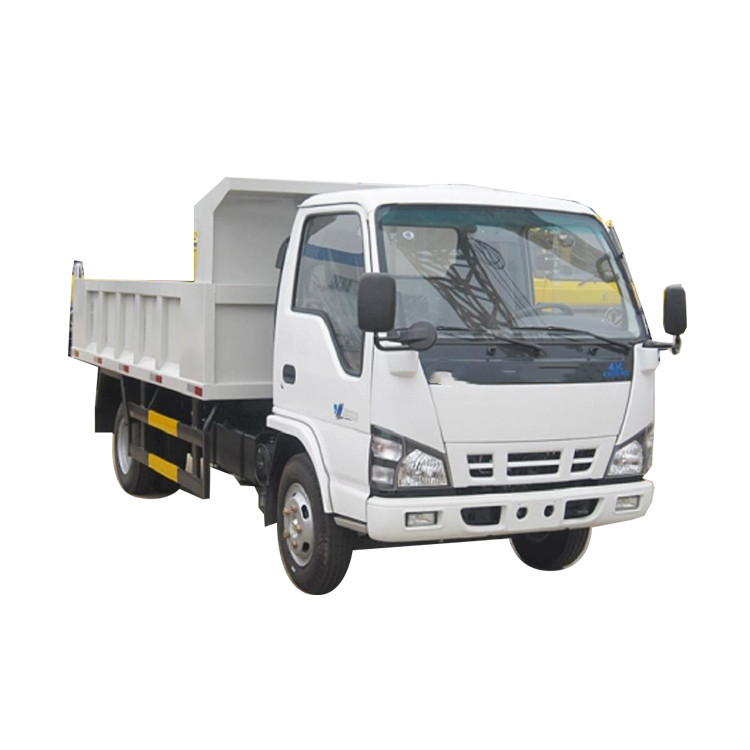

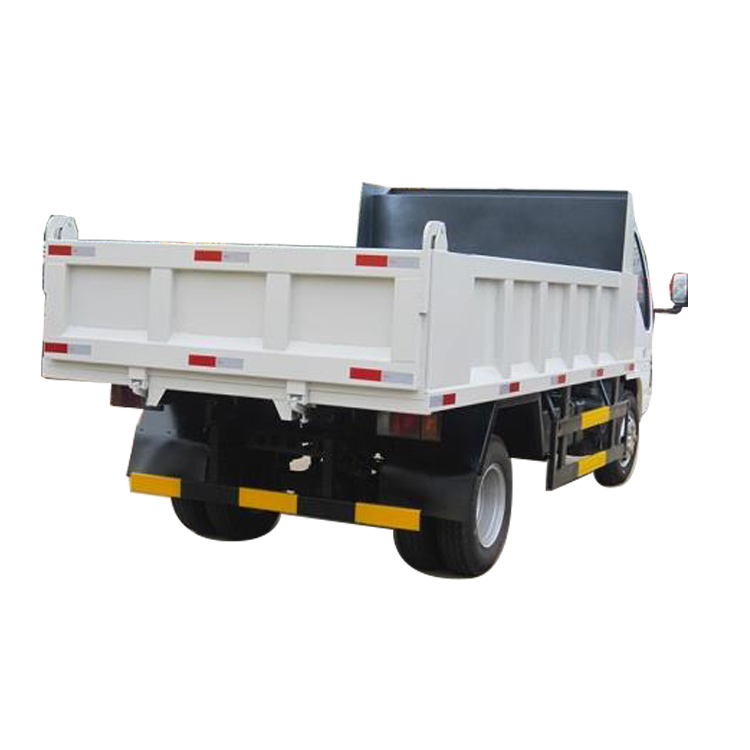

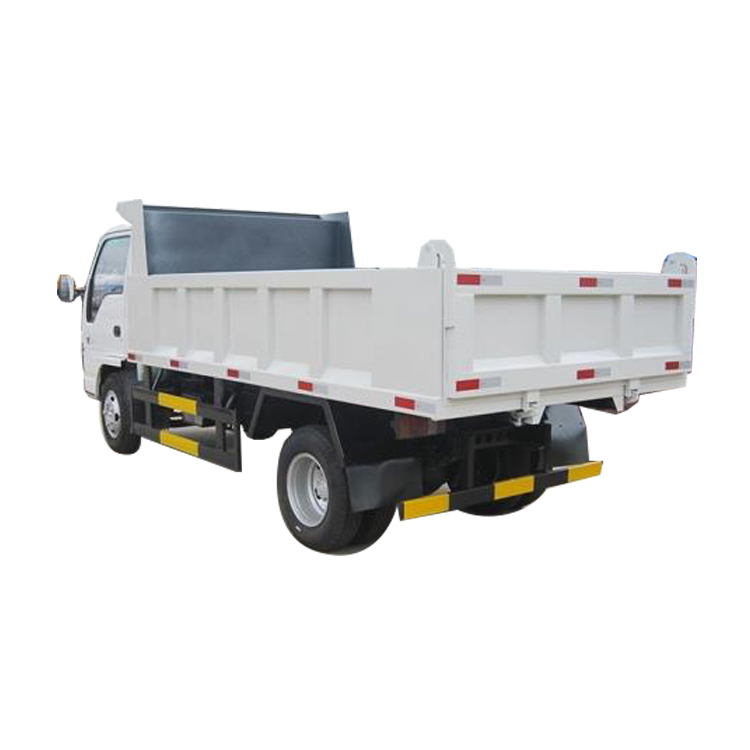

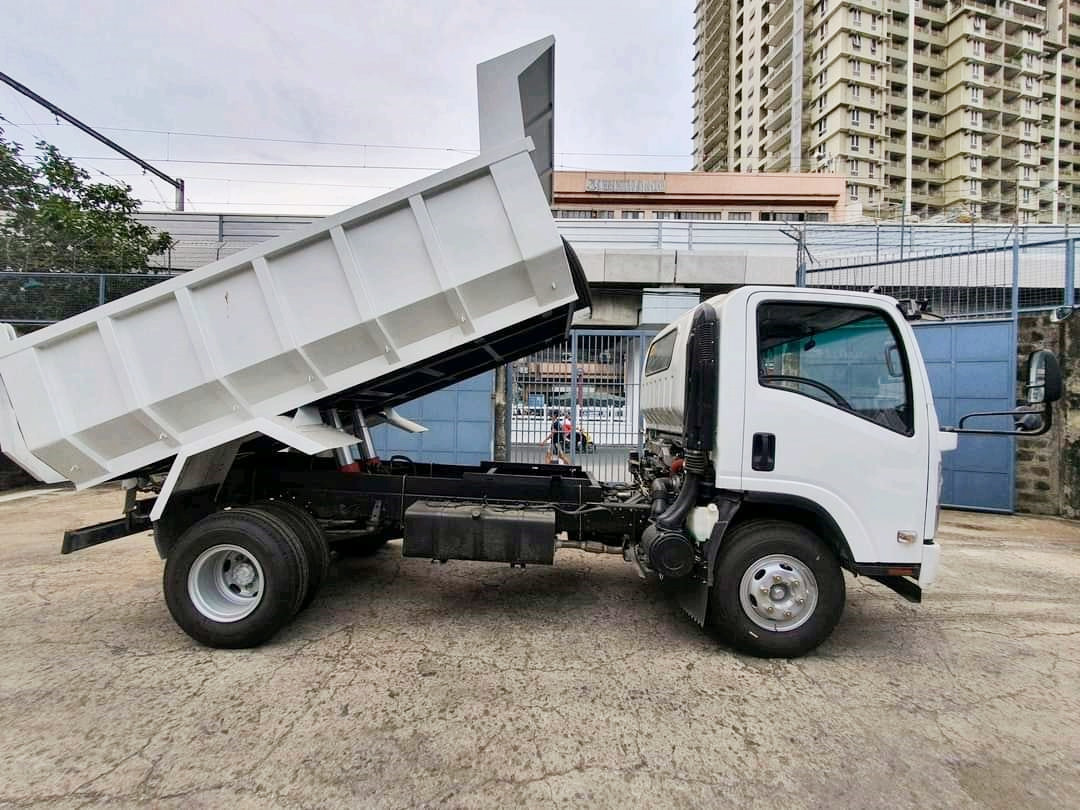

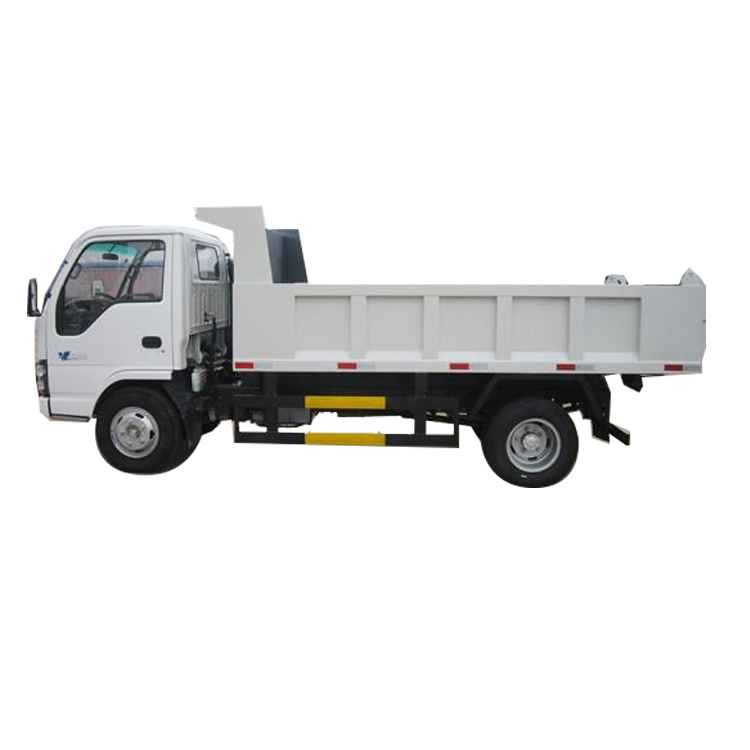

4K 600P Dump Truck 130HP ISU ZUs Light Tipper Truck With 3.2M Cargo For Sale
4K 600P Dump Truck 130HP ISU ZUs Light Tipper Truck With 3.2M Cargo For Sale
General Information
Announcement Model： | QL3040ZA5FA | Driving Mode： | 4X2 |
Wheelbase： | 2765mm | Engine： | Isuzu 4KH1 |
Transmission： | Isuzu MSB-5SM | Rear axle speed ratio： | 6.142 |
Vehicle Length： | 5.035 Meter | Vehicle Width： | 1.945 Meter |
Vehicle Height： | 2.35 Meter | Front Wheelbase： | 1504mm |
Rear wheelbase： | 1425mm | Total Vehicle weight： | 2.5 ton |
Rated load capacity： | 1.495 ton | Total Weight： | 4.125 ton |
Tonnage Classes： | Light Truck | Approach angle： | 24° |
Departure angle： | 16° | Place of Origin： | China |
Market Segmentation： | Engineering transportation |
Engine Parameter
Engine Model： | Isuzu 4KH1 | Engine Brand： | Qingling Isuzu |
Number of cylinders： | 4 | Fuel type： | Diesel |
Displacement： | 2.999L | Emission standards： |
|
Maximum horsepower： | 130hp | Maximum output power： | 96kW |
Maximum torque： | 290N·m | Maximum torque speed： | 1500rpm |
Cargo Box Parameter
Length of cargo box： | 3.26 Meter | Width of cargo box： | 1.78 Meter |
Height of cargo box： | 0.38 Meter | Cargo box form： | Self-dumping type |
Transmission parameters
Transmission Model： | Isuzu MSB-5SM | Transmission Brand： | Isuzu |
Forward gears： | 5 speed | Number of reverse gears： | 1 |
Tires
Tire specifications： | 7.00R16 8PR | Number of tires： | 6 unit |
Chassis parameters
Allowable load of front axle： | 1575kg | Allowable load of rear axle： | 2550kg |
Speed ratio： | 6.142 | Number of springs： | 3/3+2 |
