- New 3 tons Truck with fence cargo box
- Brand: Bangnisen
- Year: 2023

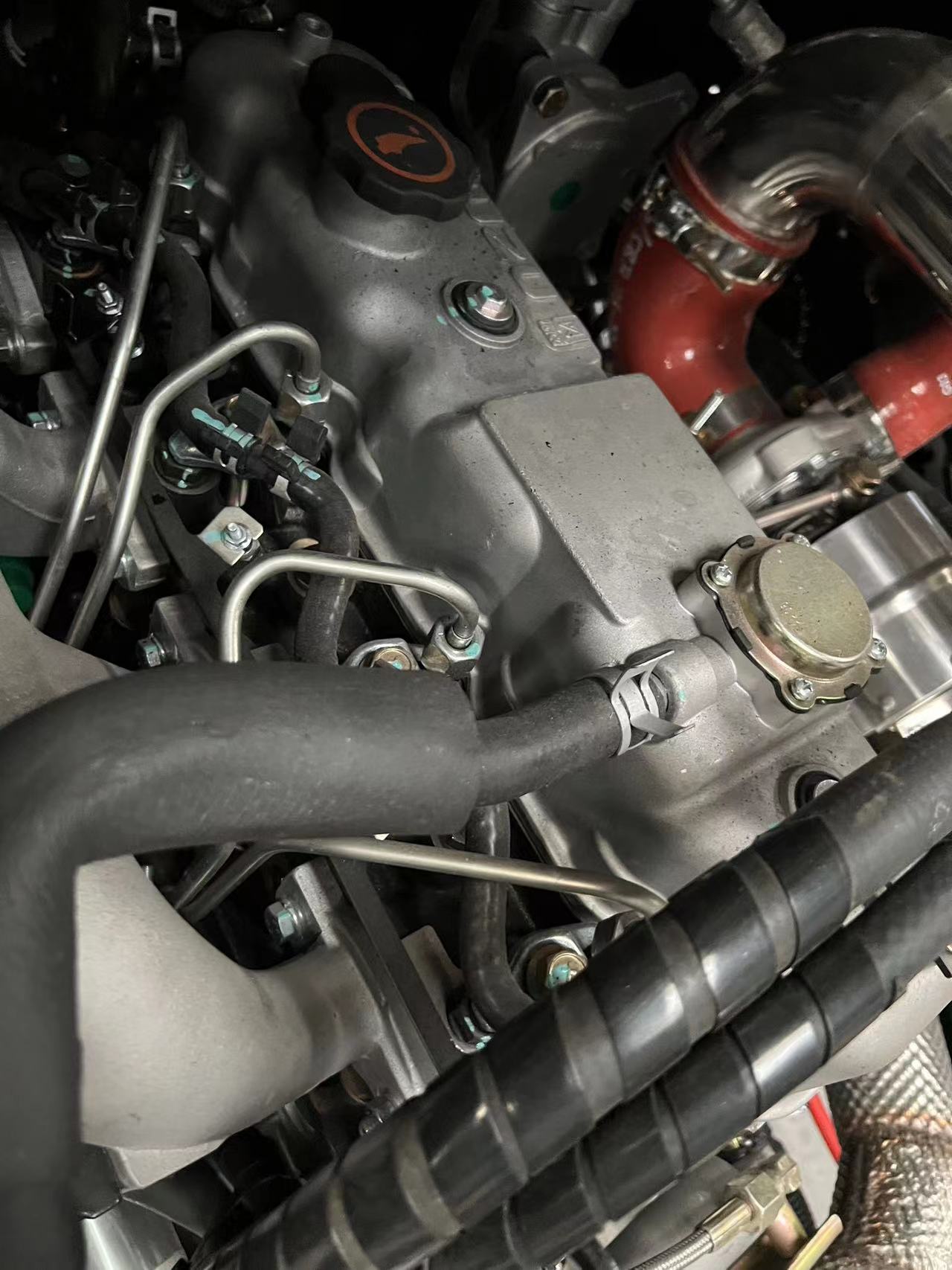

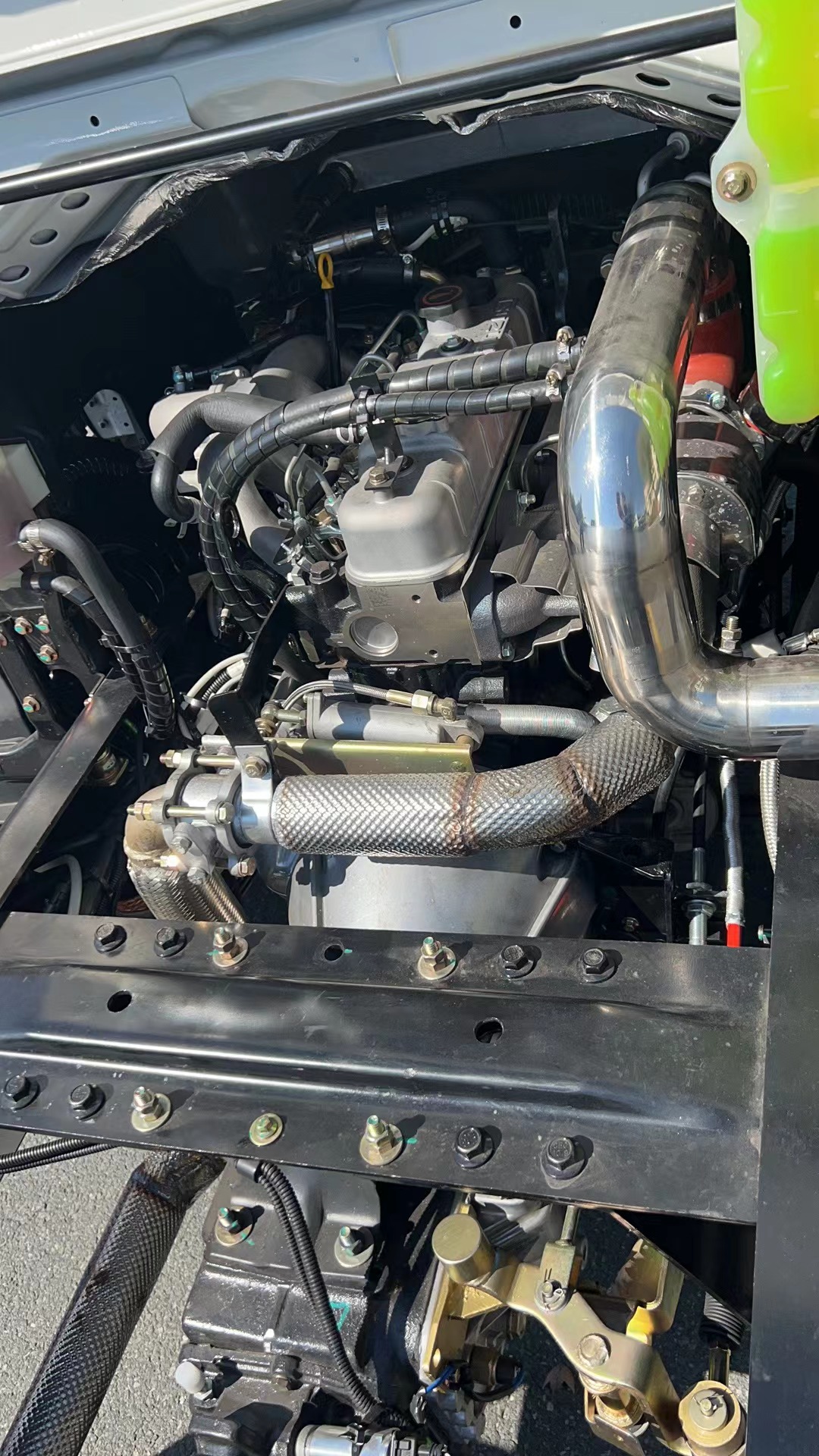

- Engine: Isuzu 4JB1
- Dispalcement: 2.771L
- Power:85KW
- Gearbox: MSB-5S
- Air brake
- Color: white
Bangnisen Brand New KV60 3-5 Tons Truck
Bangnisen Brand New BNS1040G（4X2 ) 3-5 Tons Truck
Bullet points
1.Utilizing Isuzu technology: new Isuzu engine, gearbox and rear axle
but brake, chassis and cab upgraded.
2. Air brake.
3. Almost all parts are common with Isuzu.
4. Competitive price.
For business negotiation, let's talk on WhatsApp:
https://api.whatsapp.com/send?phone=8613923483572

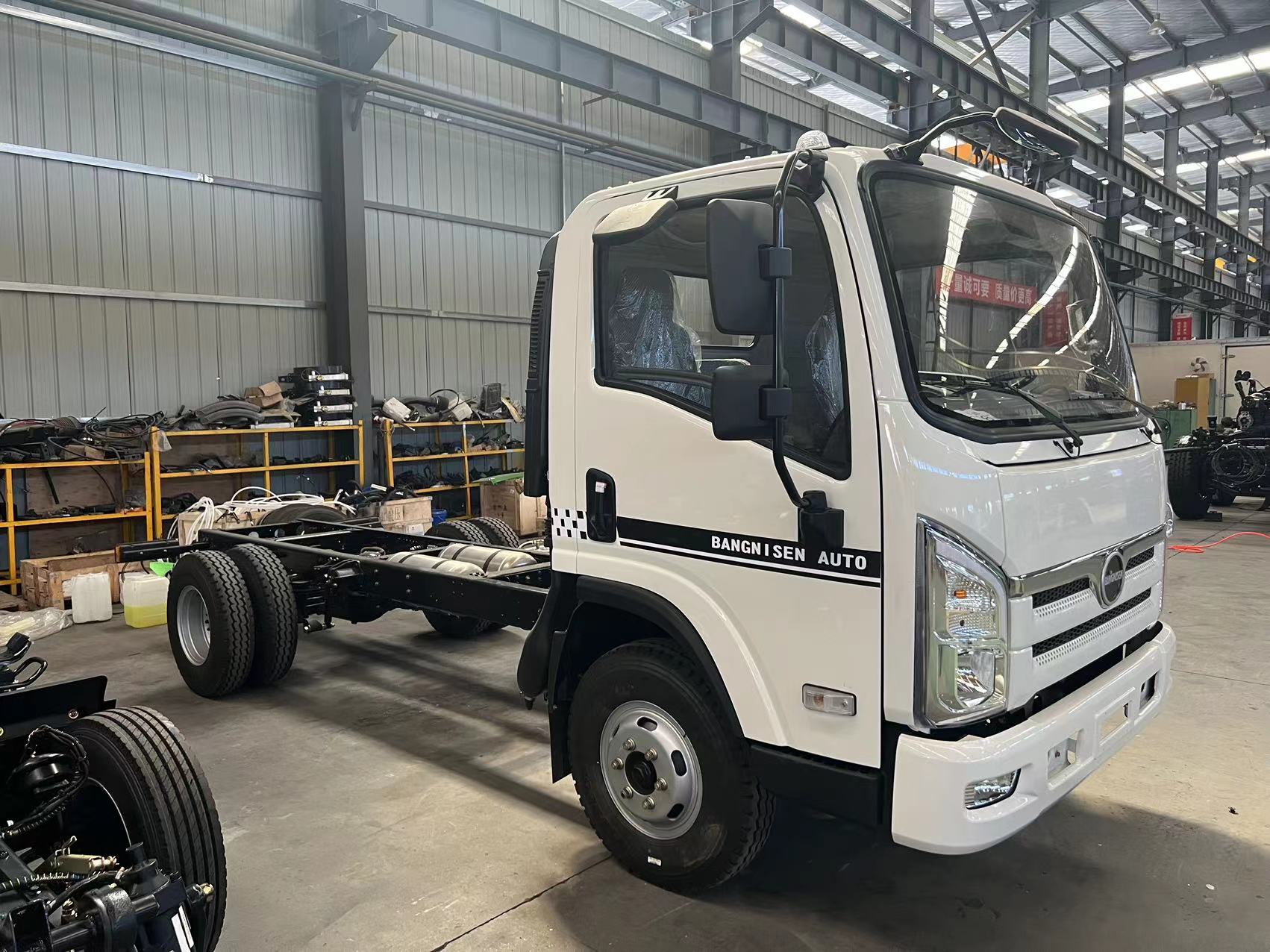

Bangnisen KV60 Chassis Truck Specification
Main Parameters | |||
Dimensions（mm） | 5990X2200X2250 | ||
Cargo Box Size（mm） | / | ||
Total Mass（Kg） | 4495 | ||
Rated loading mass（Kg） | 1800 | ||
Curb mass（Kg） | 2565 | ||
front/rear suspension（mm） | 1150/1480 | ||
Number of axes | 2 | ||
Wheelbase（mm） | 3360 | ||
Front track（mm） | 1615 | ||
Rear track（mm） | 1570 | ||
Engine model | 4JB1T | ||
Displacement（L） | 2.771 | ||
Power（Kw） | 85 | ||
Maximum torque（N.m） | 285 | ||
Emission standard | Euro III-Euro IV | ||
Fuel type | Diesel | ||
Transmission model | MSB-5S | ||
Body description | |||

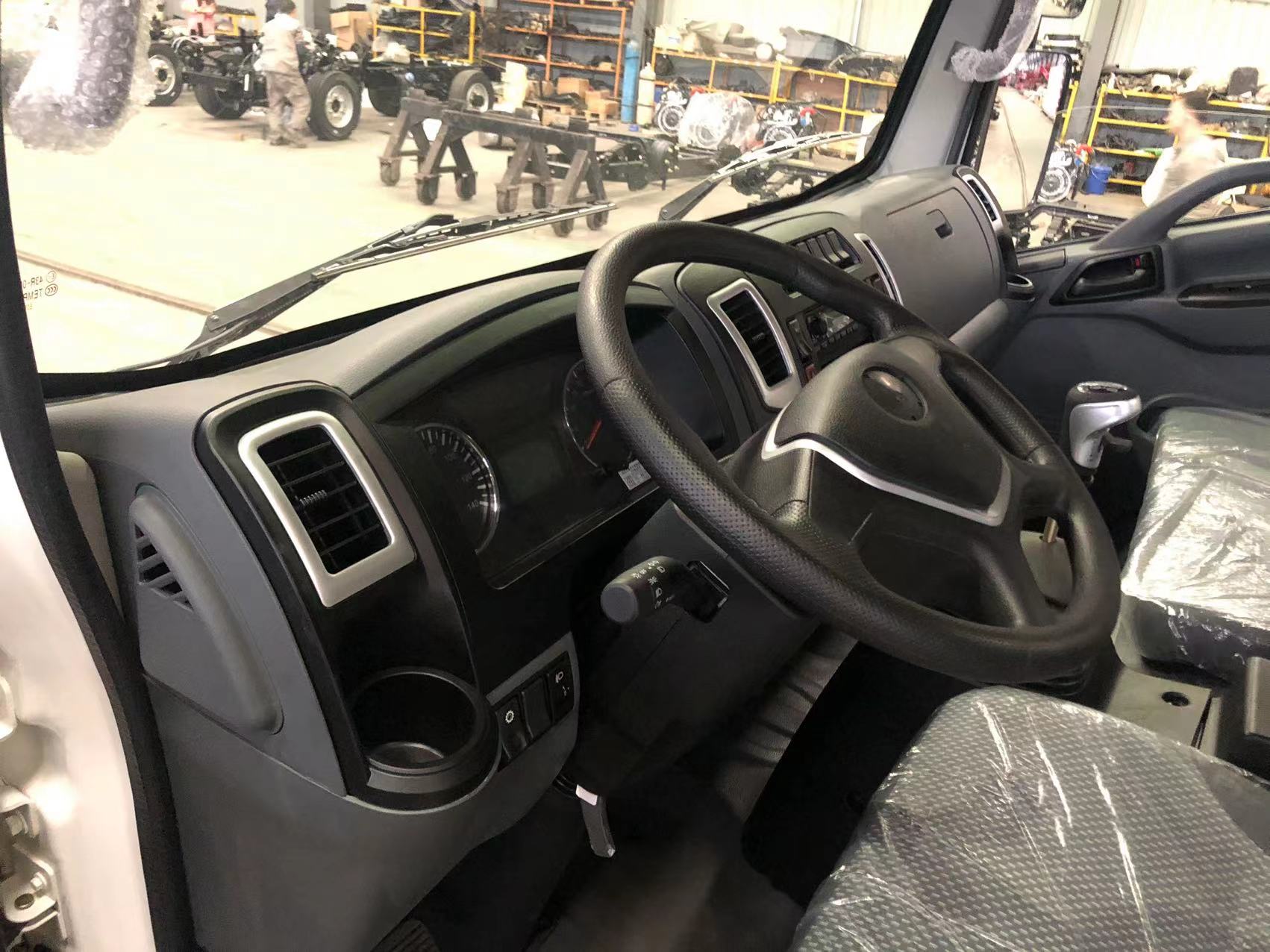

Light truck body, body width 1885mm, with bumper, headlight, electric glass window, central control door lock, radio, air conditioner, heater, body color: pearl white. | |||
Front Suspension | |||
Front axle | 2.0T | ||
Number of leaf springsXwidthXthickness（mm） | 8X75X10 | ||
Shock absorber | 2 cylinder shock absorbers | ||
Rear Suspension | |||
Rear axle | 5.5T | Speed ratio：4.875 | |
Number of main springs X width X thickness（mm） | 8X75X11 | ||
Number of secondary springs X width X thickness（mm） | 6X70X9 | ||
Shock absorber | 2 cylinder shock absorbers | ||
Frame description | |||

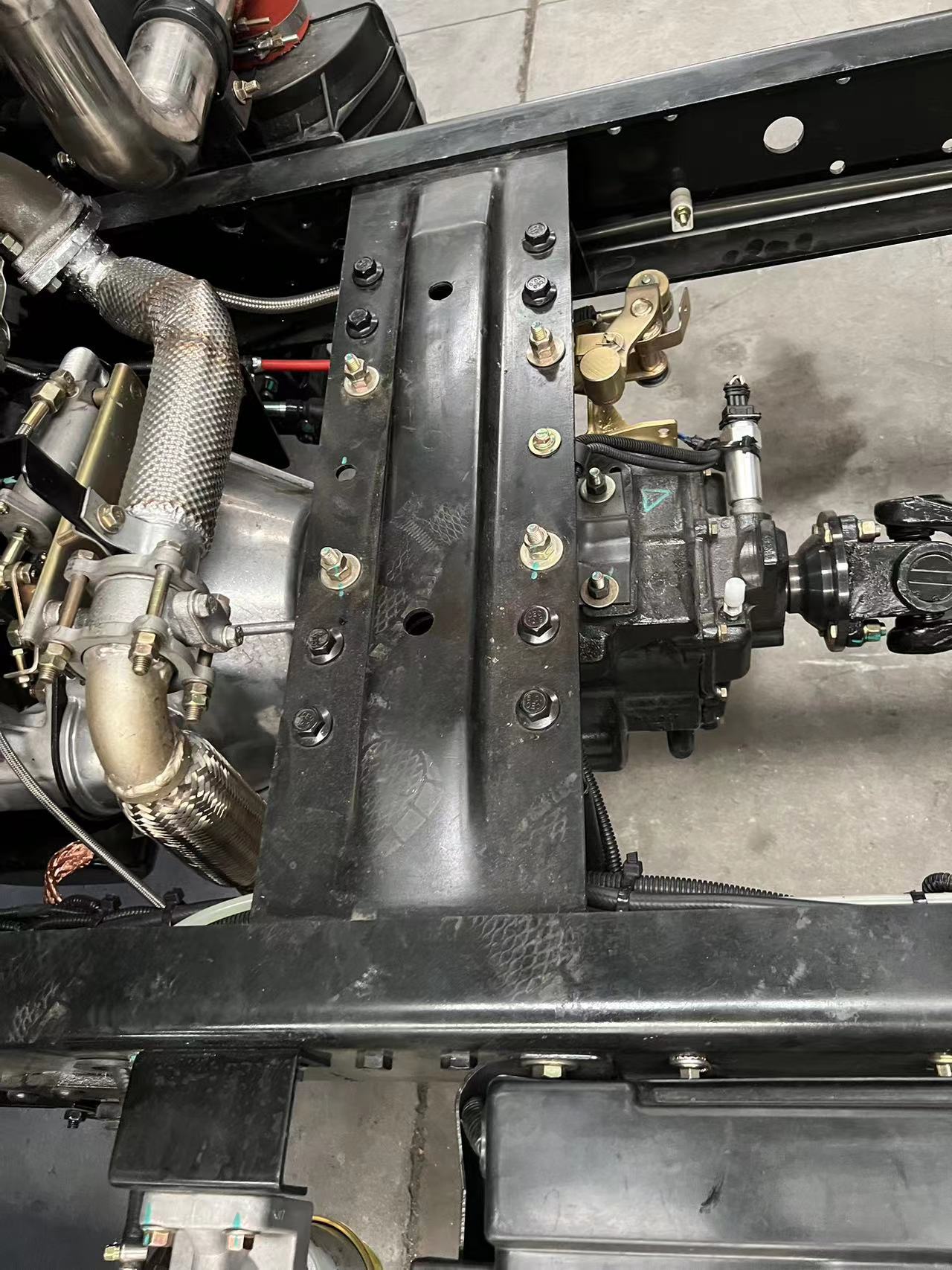

Frame material P700 girder plate, frame outer width: 800mm, longitudinal beam cross-section size (mm): 190X65X6 | |||
Cooling water tank | Aluminum alloy water tank | ||
Fuel tank | 100L aluminum alloy fuel tank | ||
Steering | Power steering | ||
Brake description | |||
Three aluminum alloy air reservoirs, dryer, quick release valve, relay valve, differential valve, dual-circuit air brake, rear axle air brake | |||
Voltage | 12V | ||
Tire | 7.50R16 | ||
Number of tire | 7 | with spare tire | |
Optional | |||
Air conditioner | |||
