- New 5 tons Truck with cargo box
- Brand: Bangnisen
- Year: new manufactured
- Engine: Isuzu 4JJ1T
- Dispalcement: 2.982L
- Power:112KW
- Gearbox: 6 gears
- Air brake
- Color: white
Bangnisen Brand New Truck 5-8 Tons BNS5010G（4X2)
Bangnisen Brand New BNS5010G（4X2）5-8 Tons Truck
Bullet points:
1.Brand new Isuzu engine, gearbox and rear axle. Reinforced chassis.
2.4JJ1 engine, environmentally friendly, small displacement but high horsepower
3. Air brake.
4. Almost all parts are common with Isuzu.
5. Competitive price
For business negotiation, let's talk on WhatsApp:
https://api.whatsapp.com/send?phone=8613923483572

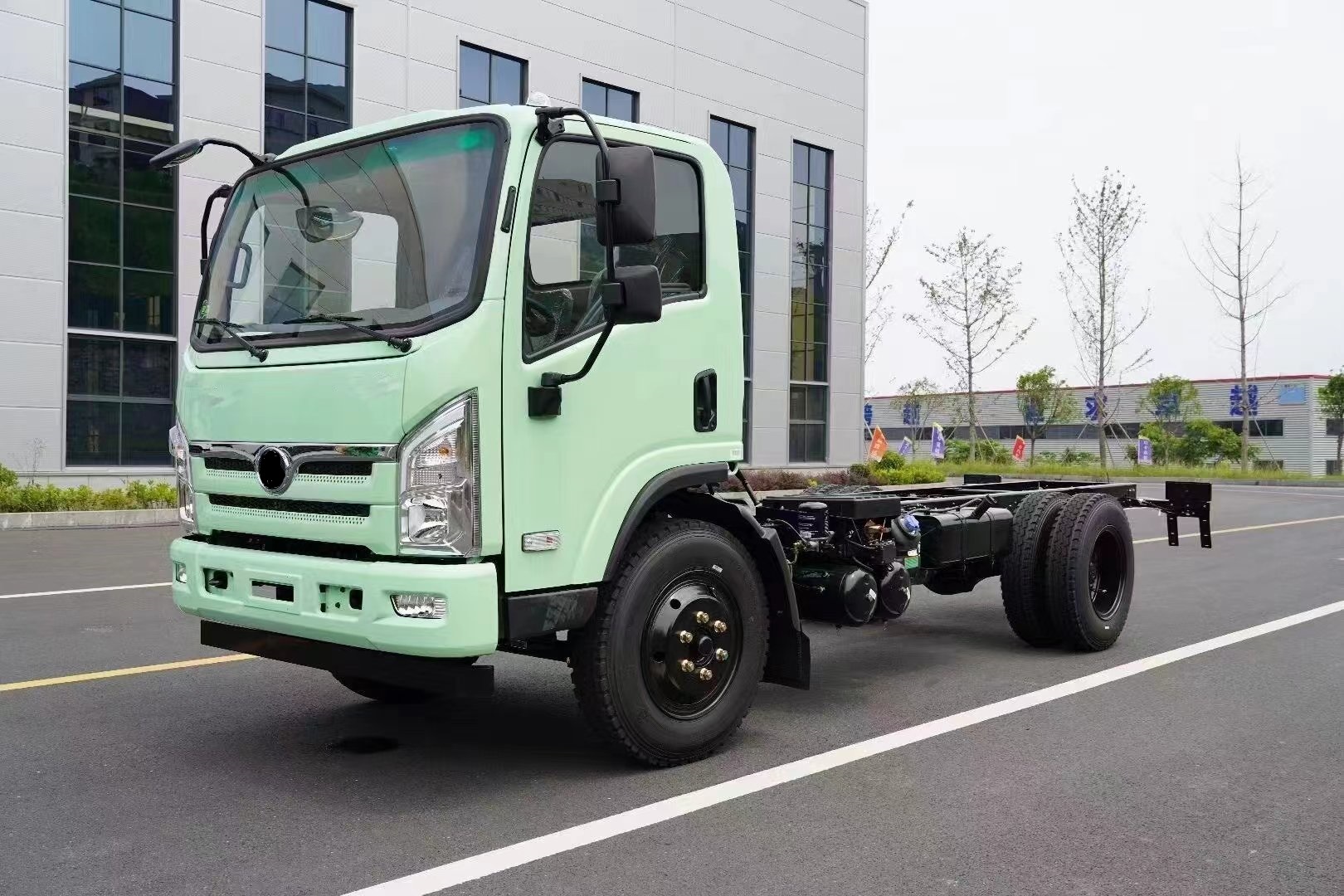

BNS5010G（4X2）Chassis Specification
Main Parameters | Manufacturer | Remarks | |
Overall dimensions (mm) | 6700*2300*2180 | customized | |
Cargo box size (mm) | / | ||
Total mass (Kg) | 9325 | ||
Rated load mass (Kg) | 4800 | ||
Curb weight (Kg) | 4300 | ||
Front suspension/rear suspension (mm) | 1150/1480 | ||
Number of axes | 2 | ||
Wheelbase (mm) | 3600/3900 | customized | |
Front wheelbase (mm) | 1615 | ||
Rear wheelbase (mm) | 1570 | ||
engine: | 4JJ1T | ||
Displacement(L) | 2.982L | ||
Power(Kw) | 112KW | ||
Maximum torque (N.m) | 382N.M | ||
emission | Euro 4- Euro 6 | optional | |
Fuel type | Diesel | ||
gearbox | N800 | ||
Body | |||
A light truck body is selected, with a body width of 1885mm, equipped with bumpers, headlights, electric windows, central door locks, radio, air conditioning, and heater. Body color: pearl white. | |||
front suspension | |||
front axle | 3.0T | ||
Number of leaf springs X width X thickness (mm) | 10/10+8 | ||
shock absorber | 2 cylinder shock absorbers | ||
rear suspension | |||
rear axle | 5.5T | speed ratio：4.875 | |
Number of main spring X width X thickness (mm) | 8X75X11 | ||
Number of secondary spring X width X thickness (mm) | 6X70X9 | ||
shock absorber | 2 cylinder shock absorbers | ||
Frame | |||
Frame material P700 girder plate, frame outer width: 800mm, longitudinal beam cross-section size (mm): 190X65X6 | |||
Cooling aluminum alloy water tank | Cooling aluminum alloy water tank | ||
Fuel supply 100L aluminum alloy fuel tank | Fuel supply 100L aluminum alloy fuel tank | ||
steering power steering | steering power steering | ||
brake | |||
Three aluminum alloy air reservoirs, dryer, quick release valve, relay valve, differential valve, dual-circuit air brake, rear axle air brake | |||
Electrical appliances | 12V | ||
tire | 8.25R16 | ||
Number of tires | 7 | With spare tire | |
air conditioner is optional | |||
Bangnisen Brand New BNS5010G（4X2）5-8 Tons Truck Bullet points:1.Brand new Isuzu engine, gearbox and rear axle.
